Dual Mode 1LAN GPON EPON XPON WIFI FTTH ONU With 2 Antennas Router ONT

SHAANXI JIZHONG ELECTRONICS SCIEN-TECH CO.,LTD.
Contact Now

Dual Mode 1LAN GPON EPON XPON WIFI FTTH ONU With 2 Antennas Router ONT

Brand Name : JiZhong

Model Number : JZOG-1200

Certification : ISO9001,WIFI,CE,RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs per Month

Delivery Time : Depends

Packaging Details : Outer Box Size:37x35x27CM, weight:6Kg per carton Qtys: 10pcs per carton

Tx Optical Power : 0~4dBm

Rx Sensitivity : -27dBm

authertation : MAC/Key/LOID

Optical Fiber : 9/125 single-mode fiber

Security : MAC address filter

Operation : PPPOE/DHCP proxy test

Size : 170x118x38mm

Product Name : Dual Mode 1LAN GPON EPON XPON WIFI FTTH ONU With 2 Antennas Router ONT

Contact Now

Dual Mode 1LAN GPON EPON XPON WIFI FTTH ONU With 2 Antennas Router ONT





Features:





JZOG-1200 is 1GE+WIFI XPON(GPON and EPON dual mode) HGU ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.

It can also be applied to a wide temperature environment, and also has a powerful firewall function.

  • HGU ONU, bridging and routing modes can be set
  • Dual mode ONU compatible with popular EPON and GPON OLT
  • Support loop detection, IGMP, IGMP snooping
  • 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
  • Support port speed, support for storm suppression
  • WiFi support 802.11n speed up to 300Mbps
  • Support No-auth, WEP, WPA-PSK and WPA2-PSK.
  • Support Telnet, CLI, OMCI/OAM and Web management
  • Support NAT, Firewall function
  • Support remote software upgrade

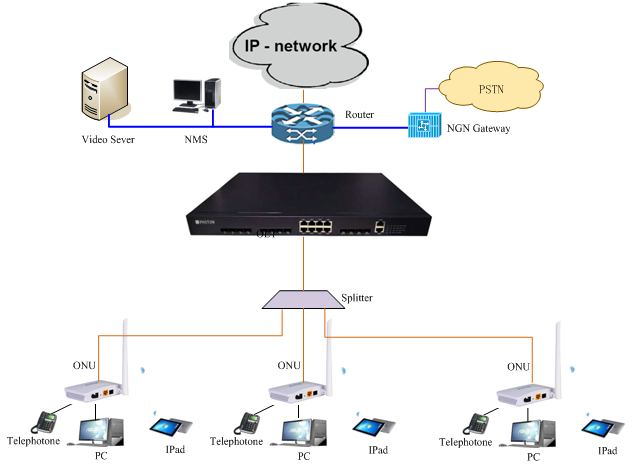

APPLICATION CHART

Dual Mode 1LAN GPON EPON XPON WIFI FTTH ONU With 2 Antennas Router ONT



Technical Parameters



Product Name:Dual Mode 1LAN GPON EPON XPON WIFI FTTH ONU With 2 Antennas Router ONT
Items Unit Specifications
PON standard.   EPON IEEE802.3ah, GPON ITU-T G.984.x
Optical interface   SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0~+4dBmTransmission distance: 20KM
Speed Gbps GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps
Wavelength nm Tx1310, Rx 1490
Interface data

1*10/100/1000Mbps

Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors

Wireless Compliant with IEEE802.11b/g/n, 300Mbps
Indicator LED POWER, LOS, PON, LAN, WiFi
Operating condition Operating temp: -5 ~ +55
Storing condition Storing temp: -30 ~ +60
Humidity % 10~90(non-condensing)
Power supply V DC 12V,0.5A adapter
Power consumption W ≤6
Dimension mm 120×78×30(L×W×H)
Net weight Kg 0.13
