Digital HD Cable Set Top Box Fully Compliant With DVB-C EN300429 And Up To 1080p

Name: Digital HD Cable Set Top Box Fully Compliant With DVBC EN300429 And Up To 1080p
Brand: JiZhong
Price: 1 USD

Buy cheap Digital HD Cable Set Top Box Fully Compliant With DVB-C EN300429 And Up To 1080p product

Brand Name : JiZhong

Model Number : DCR-860J

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 5 work days

Packaging Details : Standard Export Package

input frequency : 47~862MHz

Input impedance : 75Ω

Decode format : MPEG-2

Output format : NTSC/PAL

Audio output : L/R

Output type : RCA

Demodulate mode : QAM 16/32/64/128/256

Power Consumption : 10W

Contact Now

DVB-C Cable TV Set Top Box Support English Interface And Multiple Conditional Access System

Outline:

The device meets the DVB-C standard and supports English and Chinese interfacing as well as multiple conditional access system, PAL/NTSC auto switching, EPG pre-viewing, on-line upgrade, on display of advertises and dvertise menu.

Technical Specifications:

Input features
Input frequency range	47~862MHz	Symbol rate range	3.6~6.952MS/S
Input impedance	75Ω	Input level	35 ~ 85 dBuV
Video Features
Decode format	MPEG-2	Bit rate	2 ~ 15Mbps
Output format	NTSC/PAL	Image resolution	1920x1080
Audio Features
Audio decoding	MPEG-1/MPEG-2/AAC/AC3	Audio output	L/R
Output type	RCA	Audio distortion	≤1.5%
Signal demodulator
Demodulate mode	QAM 16/32/64/128/256	Input Voltage	DC:12V/0.8A
Power Consumption	10W(MAX)	Size	112x112x24mm

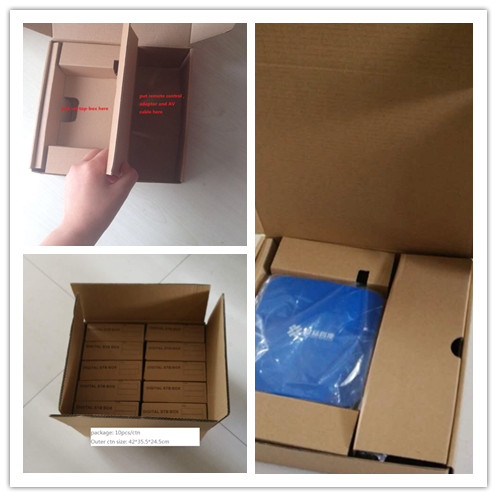

Package:

Digital HD Cable Set Top Box Fully Compliant With DVB-C EN300429 And Up To 1080p

Accesories:

Product Tags:

cable tv set top box

mini set top box

Digital HD Cable Set Top Box Fully Compliant With DVB-C EN300429 And Up To 1080p Images
