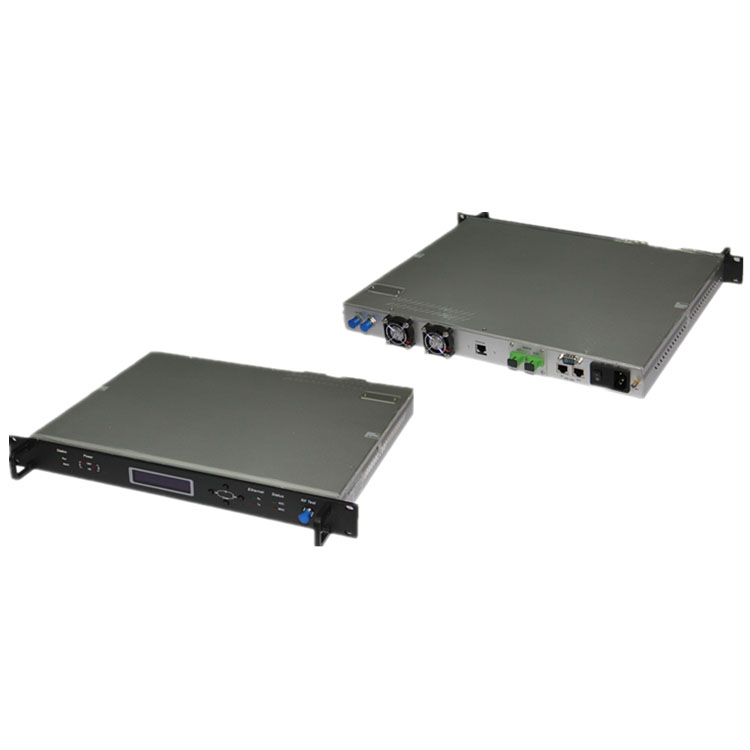

HFC Network 1550nm RF Over Fiber Transmitter Directional Modulated 24W

Name: HFC Network 1550nm RF Over Fiber Transmitter Directional Modulated 24W
Brand: JiZhong
Price: 1 USD

Buy cheap HFC Network 1550nm RF Over Fiber Transmitter Directional Modulated 24W product

Brand Name : JiZhong

Model Number : JZOT1510-KIIN

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 5 work days

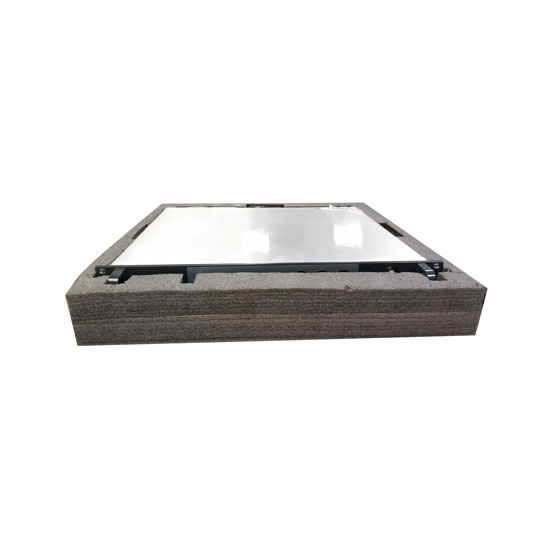

Packaging Details : Standard export package

Wavelength : 1550nm±15

Optical modulation mode : Direct modulation

Optical output : 1 way or 2 way

Optical output power : 4~10mW

Frequency range : 47~1000MHz

Input level : 75dBuv±5

Power consumption : 24W

Size : 483x400x44mm

Contact Now

HFC Network 1550nm Directional Modulated Optical Transmitter, Fiber Optical RF Transmitter

Descriptions:

JZOT1510-KIIN series direct-modulation optical transmitter is a 1310/1550nm laser transmission device independently developed by WSEE and has complete independent intellectual property rights. It has high performance, high reliability and excellent performance-cost ratio and can be widely used in various applications. Long-distance digital and analog signal communication applications include secondary CATV trunk lines and distribution networks, CWDM/DWDM systems, fiber optic sensing, and security monitoring systems.

Technical Index:

S/N	Items	Unit	Performance parameters	Remark
1	Optical power output	mW	10	4,6,8,10
2	wavelength	nm	ITU-T standard wavelength
3	modulation mode		Direct modulation
4	frequency points	PCS	≥32
5	Broadcasting road optical input range	dBm	0~+6	Combiner
5	Broadcasting road optical input range	dBm	0~+12	DWDM
6	attenuator range	dBm	-16~0
7	Optical connector type		SC/APC or FC/APC
8	Optical reflection loss	dB	>55
9	Frequency range	MHz	47~1000
10	RF input impedance	Ω	75
11	In band Flatness	dB	±0.5075
12	RF level	dBUV	15~25	Main port
13	Deputy port signal level	dB	+10	Deputy port corresponds to main port.
14	RF gain range	dB	-610~+8610
15	RF input reflection loss	dB	≥16
16	RF level control mode		Automatic/Manual
17	RF connector		Metric F-type connector
18	C/N	dB	≥51.0	6.2.3.5
19	C/CTB	dB	≥65.0	6.2.5
20	C/CSO	dB	≥60.0	6.2.6
21	Power consumption	W	24
22	Working temperature	℃	0~50
23	Storage temperature	℃	-20~+55
24	Network management interface		RJ45	Type-II network management
