-18dBm Optical Receiver Node For Fiber To The Home Broadband Access CE Approval

Name: 18dBm Optical Receiver Node For Fiber To The Home Broadband Access CE Approval
Brand: JIZHONG
Price: 1 USD

Buy cheap -18dBm Optical Receiver Node For Fiber To The Home Broadband Access CE Approval product

Brand Name : JIZHONG

Model Number : JZORH1000-1BIX

Certification : ISO9001,CE

Place of Origin : CHINA

MOQ : 1pc

Price : Negotiable

Payment Terms : L/C,TT,Western Union

Supply Ability : 10000PCS/Month

Delivery Time : Depends

Packaging Details : 100PCS/CTN,CTN SIZE:475*380*375MM

Keywords : Micro Fiber Optical FTTH MINI NODE

AGC Range : -15~-5dBm

Output Reflection Loss : >14dBm

Output Level : 75dBuV

Power consumption : 1.3W

Size : 76*63*30mm

Contact Now

-18dBm Receive Optical Power Micro Fiber Optical FTTH MINI NODE With SC/APC

Feature

Fiber to the home ( FTTH ) broadband access is the ultimate development goal, JZORH1000-1BIX FTTH mini node is the target terminal for the goal. It adopts technology of high isolation WDM in order to separate CATV and ONU signal,low input optical power. The optical power receiving monitoring indicator LED ( ≥-15dBm) is provided on the pane and it supports RF outputs constantly , convenience of customers use,

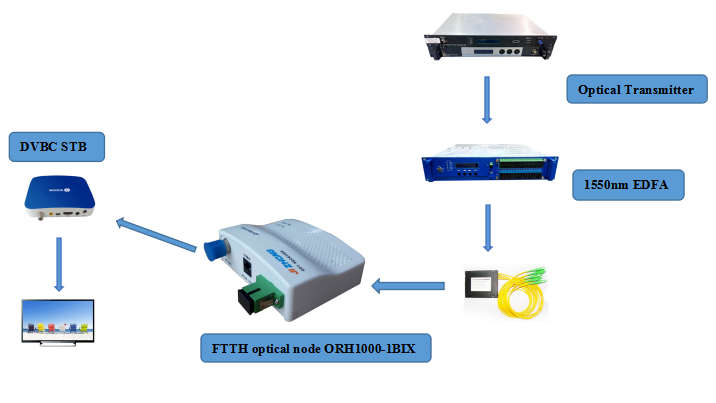

Application

Technical Specification

Item	Unit	Parameters	Remark
Keywords	Micro Fiber Optical FTTH MINI NODE
Forward Bandwidth	MHz	47~1000
Nominal input optical power	dBm	-20~0
Optical AGC range	dBm	-5~-15	optional
Optical wavelength	nm	1550	Single window
Link C/CSO	dB	>65
Link C/CTB	dB	>62
Typical output level	dBμV	72
Optical reflection loss	dB	>45
Optical connector		SC/APC or FC/APC	optional
RF flatness in band	dB	±1
Output reflection loss	dB	≥16
Link C/N	dB	>44	OMI=3.5%,84 path PAL-D analog channel.test under optical power:-9dBm
MER	dB	≥33	test when input optical power -15dBm
RF output		Standard F interface
Power adatper
Input voltage	V	100~240	AC
Output voltage	V	5	DC
Working temperature	℃	-25~+60
Storage temperature	℃	-40~+65
Relative humidity	%	Max 95,no condensation
MTBF	h	80000
Power consumpiton	W	1.3	Include power adatper
Size	mm	76×55×30

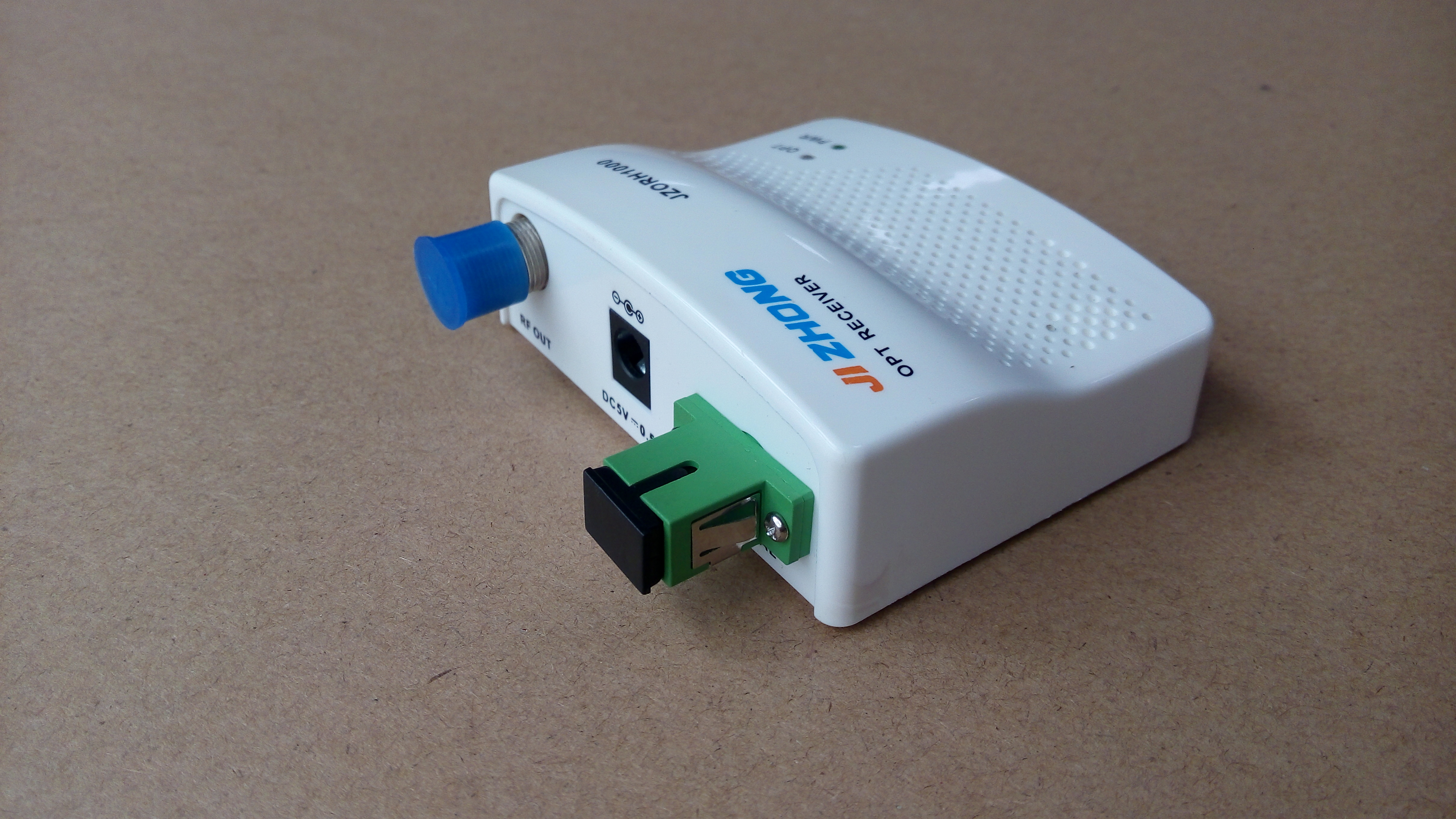

Front
